Where it fits
- Jewellery counters and watch displays read from 1.5 m
- Museum and exhibition labels where the poster is also a graphic
- Luxury retail windows that need a black surface when off
P1.538 technical data
| Construction | Seamless-splicing poster cabinet on castors |
|---|
| Pixel pitch | P1.538 mm |
|---|
| Cabinet | 640 × 1920 × 60 mm, 48 kg |
|---|
| Cabinet resolution | 416 × 1248 dots |
|---|
| Module | 320 × 160 mm, 0.5 kg |
|---|
| Modules per cabinet | 24 |
|---|
| Brightness | ≥700 nits |
|---|
| Gray scale | 16 bit |
|---|
| Refresh rate | ≥3,840 Hz |
|---|
| Frame rate | 60 Hz |
|---|
| Evenness | ≤0.5 mm |
|---|
| Protection | IP43 indoor |
|---|
| Power | 265 W average, 800 W max |
|---|
| Viewing angle | H160° / V160° |
|---|
| Splicing | Frame opens — several posters form one wall without removing the border |
|---|
| Maintenance | Magnetic front maintenance |
|---|
| Control | Remote control with real-time updates |
|---|
| Packing | Flight case, 1-in-1 or 2-in-1 |
|---|
| Warranty | 2 years, plus lifelong maintenance |
|---|
| Documentation | Datasheet, wiring diagram and module map on request |
|---|
Questions asked before ordering the P1.538
Why does pixel count matter more than brightness here?
Because the viewer is close. At 1.5 m a 700-nit poster is comfortable in shop lighting, but 320 pixels across the width would dissolve the detail on a ring. P1.538 gives 416.
Can two posters be joined without a visible seam?

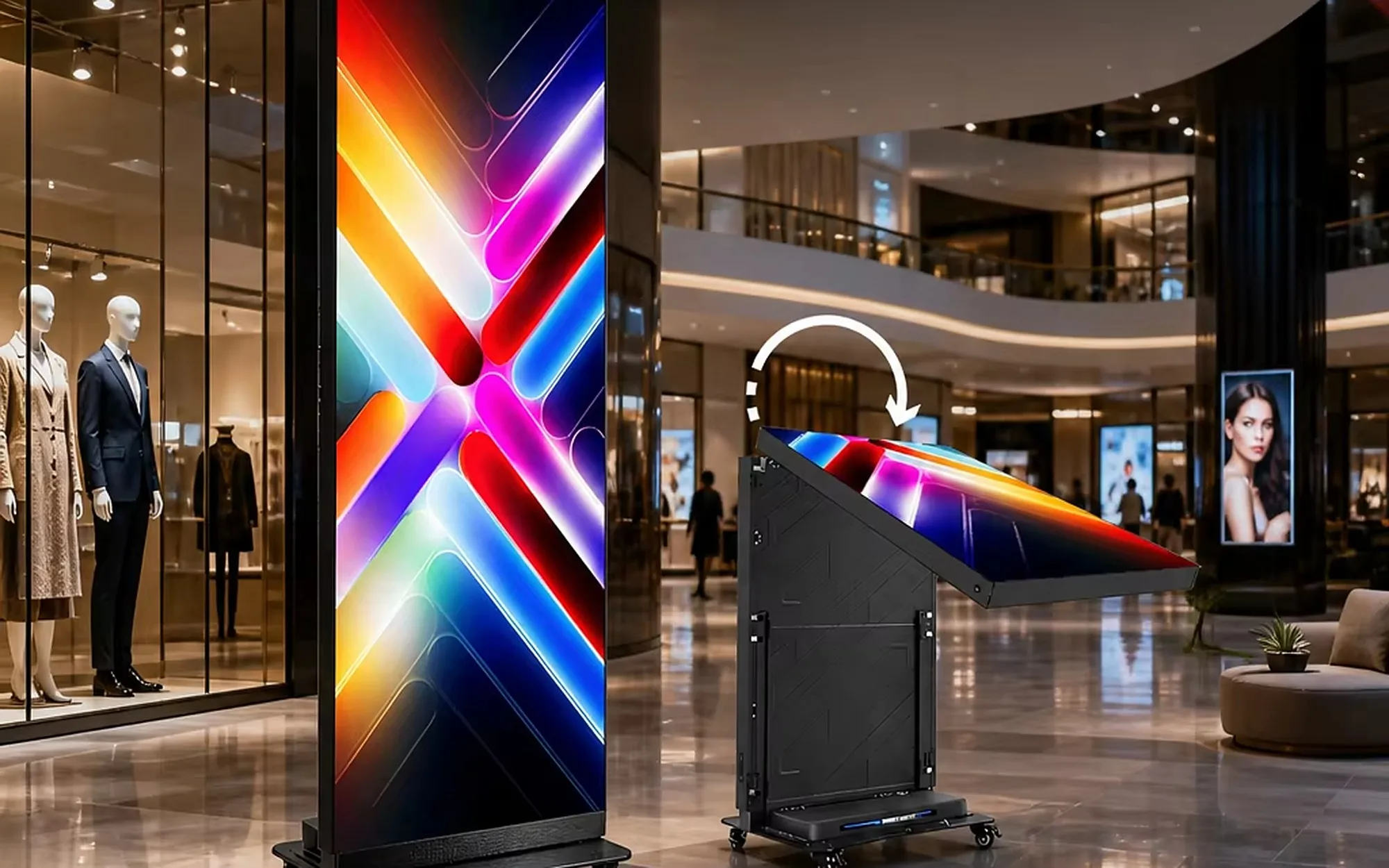

Yes. The border folds open and the cabinets butt together, so a pair reads as one 1280 × 1920 surface. That is what the seamless-splicing frame is for — you do not remove the border to splice.
How is a dead module replaced in a shop?
Magnetic front maintenance: the module is pulled from the face with a suction tool, no cabinet comes off the base and the poster stays in position.
